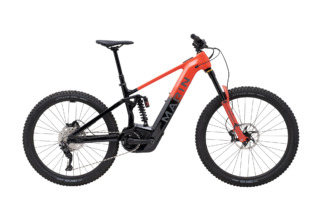

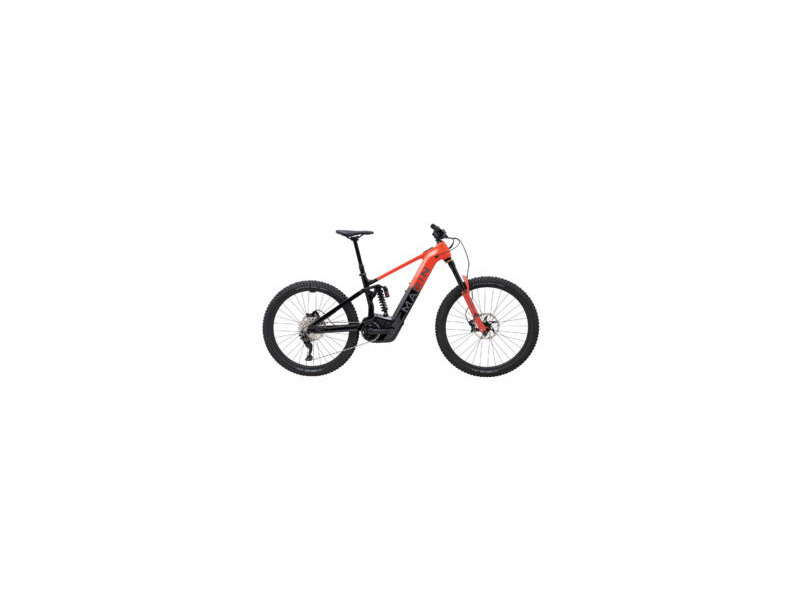

MARIN Alpine Trail E1 Bosch 2025

   Pinterest PinIt
Pricing
£4499.00


Finance* from £107.54 per month

*subject to status, minimum spend applies

Hover mouse for full example.
Model Year 2025
Options M RED In Stock (Warehouse)
L RED In Stock (Warehouse)
XL RED In Stock (Warehouse)
Product Marin's electric assist mountain bikes are for riders who need a boost, either to cover more distance in a shorter amount of time or to go farther or higher than they might be able to accomplish on their own. Designed from the ground up around durable Bosch motor and battery units, the New Marin electric mountain bike lineup is our most capable to date.
Marin's electric assist mountain bikes are for riders who need a boost, either to cover more distance in a shorter amount of time or to go farther or higher than they might be able to accomplish on their own. Designed from the ground up around durable Bosch motor and battery units, the New Marin electric mountain bike lineup is our most capable to date.
Frame: All New, Series 4 Alloy Frame, 160mm Multitrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Rear Suspension: Marzocchi CR Coil, 205x65mm, Trunnion Upper Mount, 30xM8 Lower Hardware, Custom Tune, Spring Rate S/M = 350 lbs/in M/L = 450 lbs/in
Fork: Marzocchi Z1, 170mm, 29", 110x15 Kabolt Thru Axle, 44mm Offset
Headset: FSA Custom Headset, Adjustable HTA Design
Stem: Marin 3D Forged Alloy, 35mm
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Grips: Marin Grizzly Lock-On
Brake Levers: Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible
Brakes Front: Tektro Slate EVO, 4-Piston Hydraulic Disc Brake, Resin Pads, 203mm Rotor
Brakes Rear: Tektro Slate EVO, 4-Piston Hydraulic Disc Brake, Resin Pads, 203mm Rotor
Tires: Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5" With Cush Core Pro Tire Inserts
Rim: Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Front: Shimano Front Hub, 110x10 Thru Axle, 32H, Centerlock
Hub Rear: Shimano FHTC500, 148x12 Thru Axle, Mircospline, 32H, Centerlock
Spokes: 14g
Derailleur Rear: Shimano CUES RD-U6000 GS, 10-Speed
Shift Lever: Shimano CUES SL-U6000-10R, 10-Speed
Chain: Shimano LG500
Cassette: Shimano CS-LG300-10, 11-48T
Crankset: e*13 e*spec Plus Cranks, 160mm Length
Bottom Bracket: Bosch
Saddle: Marin Speed Concept
Seatpost: TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Motor: Bosch Performance CX, 85Nm
Battery: Bosch PowerTube 750 Wh
Switch: Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Display: Bosch BRC3100 Systems Controller
Extra1: e*13 e*Spec Chainguide
Extra2: Marin Tire Sealant 300ml Bottle
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
